Sigma Motion
A motion capture system developed by iPOP that translates body movement into 3D avatar motion for XR training, animation and motion analysis.
Specifications
| Dynamic Accuracy | Roll: 1° / Pitch: 1° / Yaw: 1° |
|---|---|
| Internal Algorithm Rate | 1,000 Hz |
| Update Rate | 200 Hz |
| Communication | 2.4 GHz |
| Angular Rate Noise Density | 0.075 dps/√Hz RMS |
| Connected Modules | 15 |
| Simultaneous Charging | Up to 16 sensors |
| Station Communication | 200 Hz / Ethernet |
iMotion17
A 17-module motion capture system with 200 Hz updates and 2.4 GHz / RS485 communication, designed to reproduce body movement in 3D applications.
Specifications
| Dynamic Accuracy | Roll: 0.5° / Pitch: 0.5° / Yaw: 1° |
|---|---|
| Internal Algorithm Rate | 1,000 Hz |
| Update Rate | 200 Hz |
| Communication | 2.4 GHz / RS485 |
| Angular Rate Noise Density | 0.008 dps/√Hz RMS |
| Connected Modules | 17 |
| Simultaneous Charging | Up to 20 sensors |
| Station Communication | 200 Hz / Ethernet |

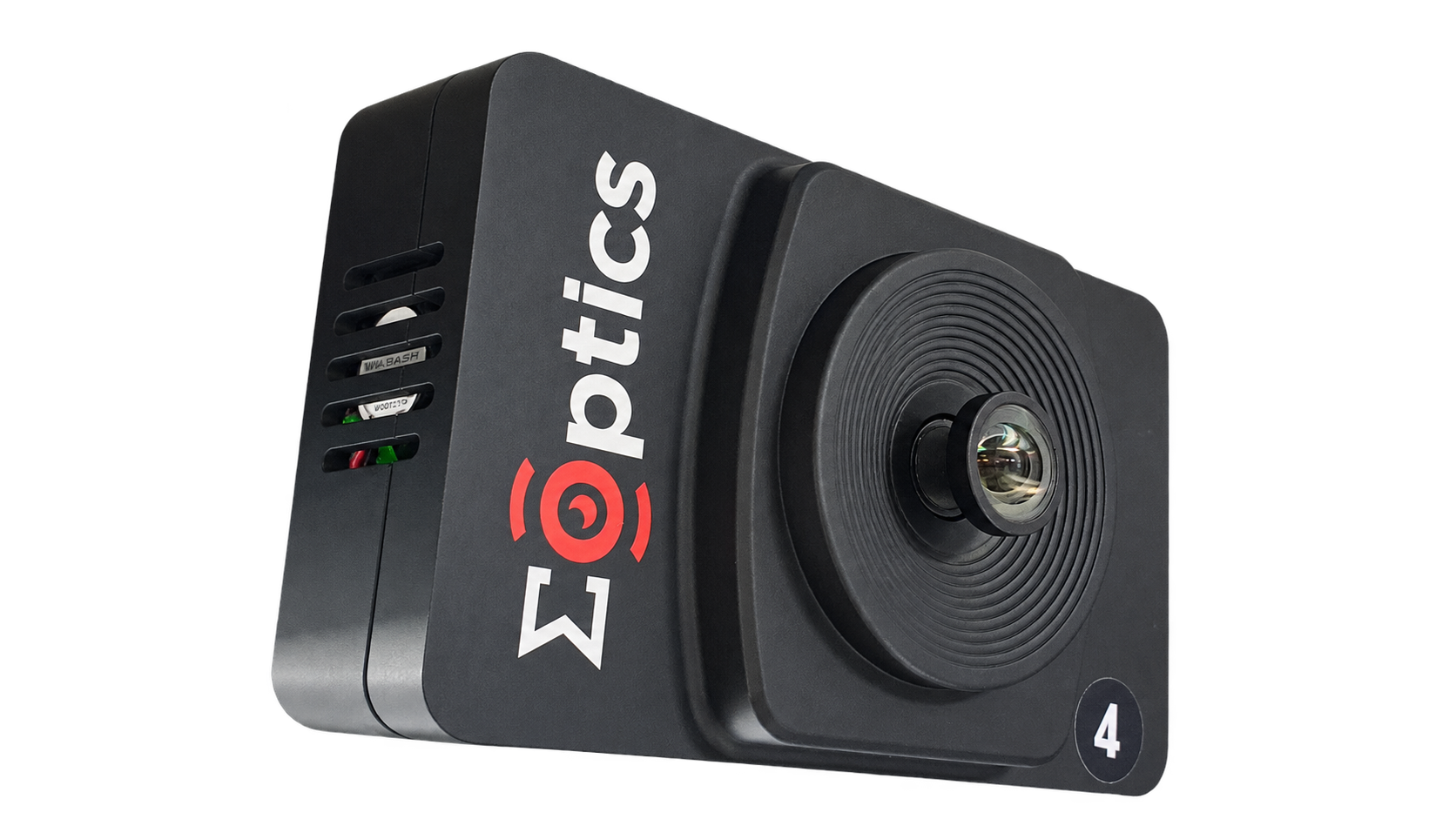

Sigma Optics
An optical position tracking system developed by IPOP. High-speed near-infrared cameras track infrared markers in real time for multi-user XR environments.
Specifications
| Tracking Method | Near-infrared cameras and infrared markers |
|---|---|
| Position Tracking Accuracy | Within 10 mm |
| Camera Resolution | 800 × 600 pixels |
| Frame Rate | ≥ 100 fps |
| Latency | ≤ 10 ms |
| Power Supply | PoE (Power over Ethernet) |
| SDK Support | Access to real-time tracking data |

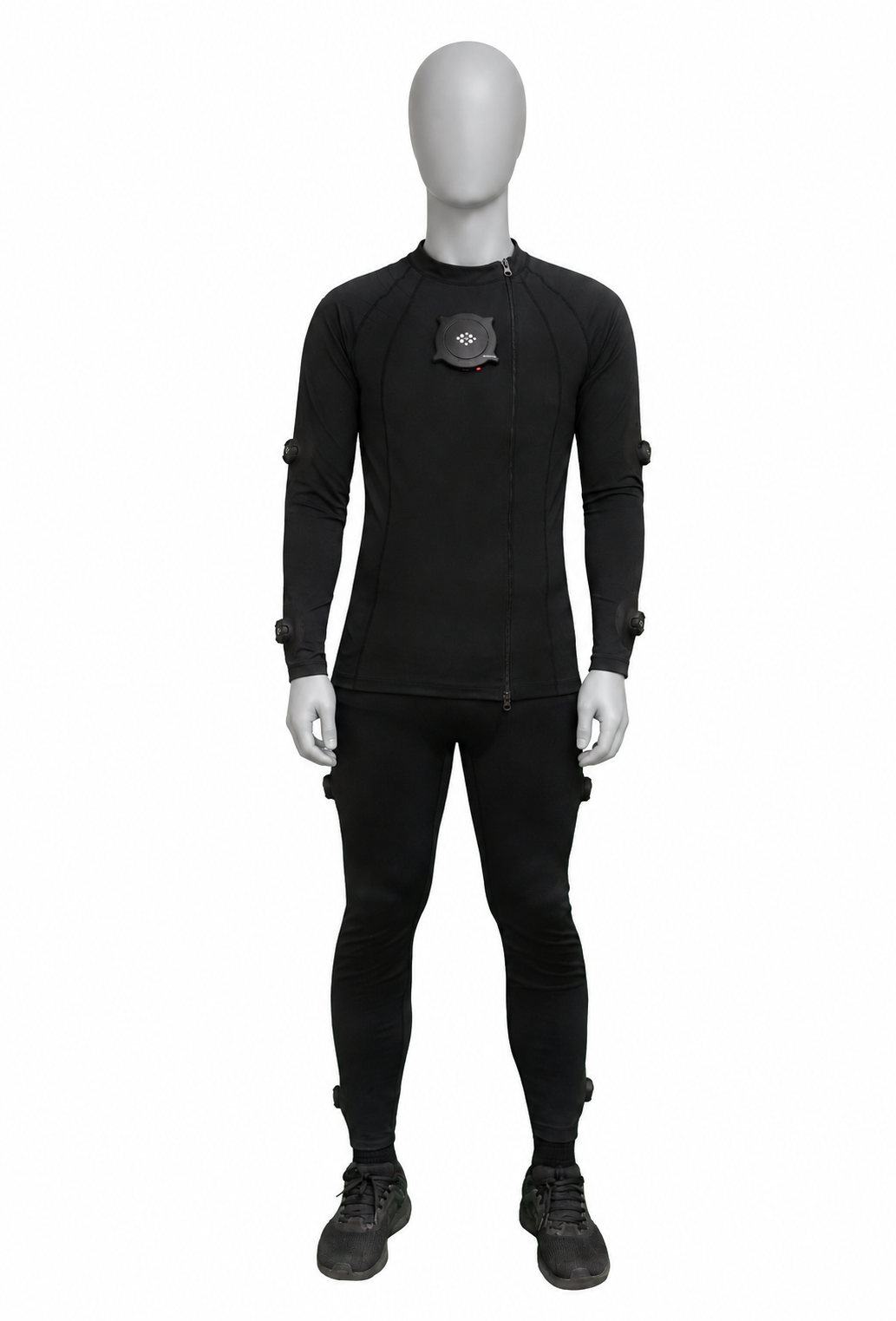

Full-Body EMS / Haptic Suit
A full-body suit that combines low-frequency electrical muscle stimulation (EMS) with motor vibration to deliver physical sensations linked to immersive training content.
Specifications
| Coverage | Full body |
|---|---|
| Feedback Types | Low-frequency EMS and motor vibration |
| Haptic Feedback Combinations | 300 |
| Content Interaction | Impact sensations linked to virtual scenarios |

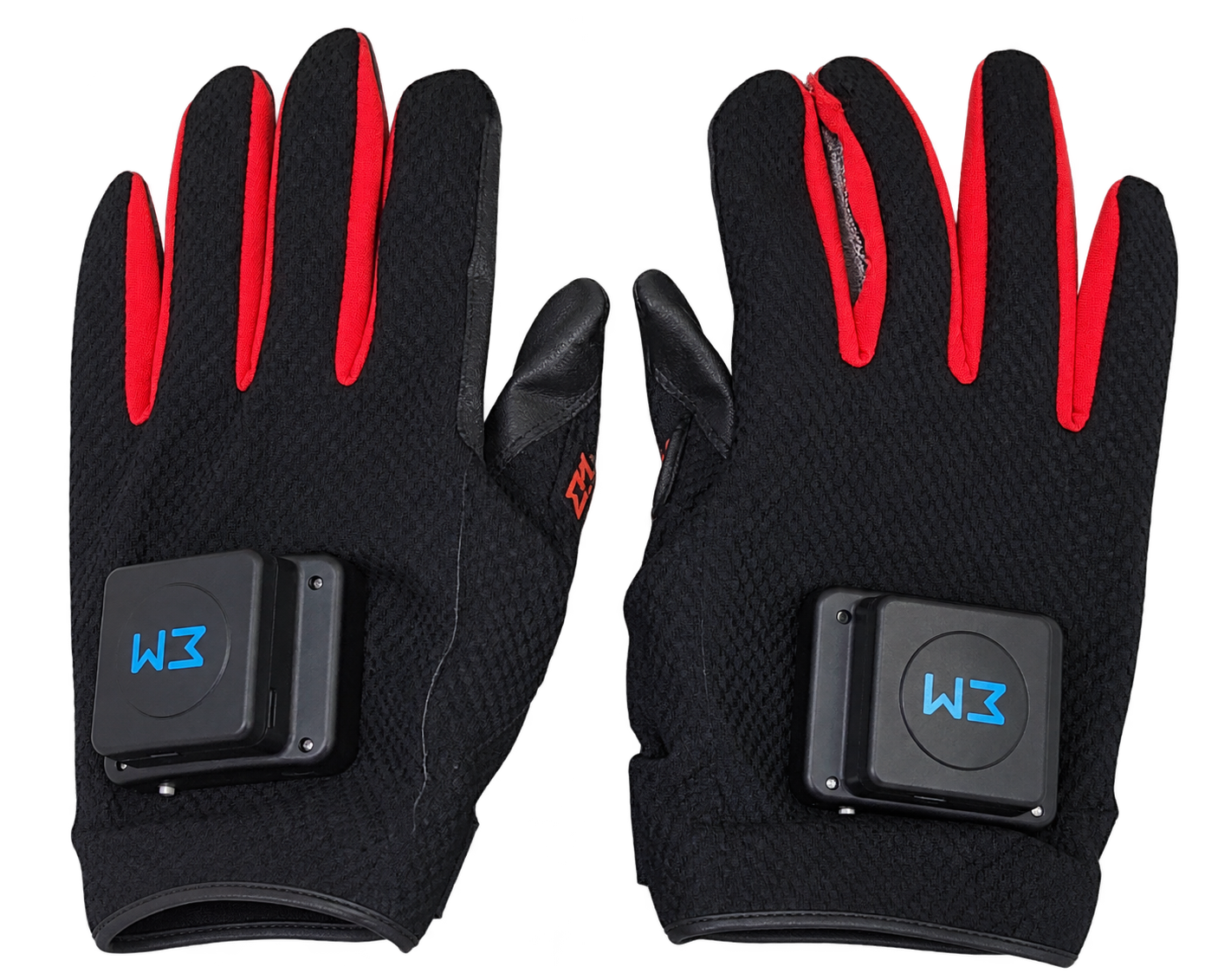

Haptic Glove
A smart glove that tracks hand and finger movement and provides vibration and temperature feedback for immersive XR training.
Specifications
| Tracked Movement | Hands and fingers |
|---|---|
| Haptic Feedback | Vibration and temperature |
| Application | Immersive XR training content |
